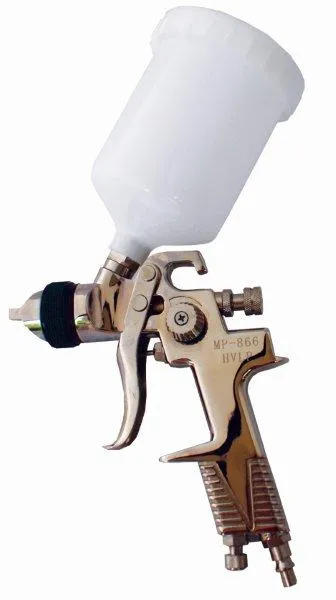

HVLP spray gun 1.4mm
The success behind an HVLP spray gun, is the low amount of overspray.
This is achieved by having an improved atomization, by using a lower air pressure and a higher volume of airflow.
Features:
- Cast aluminium body construction
- Comfortable, balanced and easy to control by having the gravity cup angled slightly backwards
- Light in weight, thanks to the aluminium body
- Easy spray pattern and fluid control adjustment
- Stainless steel fluid tip and needle
- Rotatable aircap to change spray pattern direction
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
| Description | Specification |
| Working pressure | 22-43 Psi (1.5 - 3 Bar) |
| Cup capacity | 600 ml |
| Feed type | Gravity feed |
| Airflow consumption | 340 l/min |
| Air inlet hread | 1/4 BSP |
| Nozzle/Needle | Ø 1.4mm |
| Pattern width | 24 cm |
